SKF SNL 316 TURU SNL plummer block housings for bearings with a cylindrical bore, with oil seals

SKF SNL 316 TURU SNL plummer block housings for bearings with a cylindrical bore, with oil seals
SNL plummer block housings for bearings with a cylindrical bore, with oil seals

Bearing (basic designation)			C 2316
Lock nut			KM 16
Lock washer			MB 16
Locating ring			2 x FRB 5/170
End cover			ASNH 519-616 R

Appertaining products

Housing			SNL 519-616 RU
Oil seal			2 x TSN 316 U

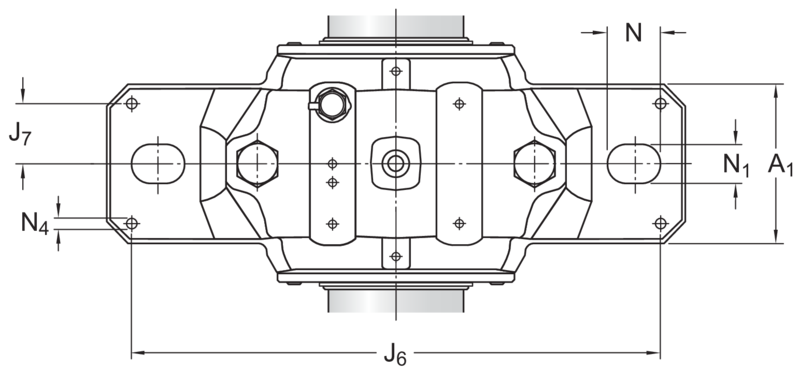

Dimensions

da		80	mm
db		90	mm
Ca		68	mm
Da		170	mm
A		145	mm
A1		100	mm
A2		166	mm
H		212	mm
H1		112	mm
H2		35	mm
J		290	mm
L		345	mm
N		28	mm
N1		22	mm
Dowel pins
J6		317	mm
J7		35	mm
N4	max.	8	mm

Breaking loads, housing

P0°		450	kN
P55°		580	kN
P90°		350	kN
P120°		260	kN
P150°		230	kN
P180°		290	kN
Pa		190	kN

Yield point, cap bolts

Q120°		400	kN
Q150°		230	kN
Q180°		200	kN

Mass

Mass housing

13.7

kg

Mounting information

Cap bolt, size			M 16x90
Cap bolt, rec. tightening torque			150	N·m
Appropriate attachment bolt, size	G		20	mm
Appropriate attachment bolt, rec. tightening torque			385	N·m
Oil level, min.			41	mm
Oil level, max.			50	mm
