SKF SNL 206-305 Split plummer block housings, SNL and SE series for bearings on a cylindrical seat, with standard seals

SKF SNL 206-305 Split plummer block housings, SNL and SE series for bearings on a cylindrical seat, with standard seals
Split plummer block housings, SNL and SE series for bearings on a cylindrical seat, with standard seals

Bearing (basic designation)			C 2206
Lock nut			KMFE 6
Locating ring			2 x FRB 6/62

Dimensions

da		30	mm
db		35	mm
Ca		32	mm
Da		62	mm
Db		46.5	mm
A		77	mm
A1		52	mm
H		89	mm
H1		50	mm
H2		22	mm
J		150	mm
L		185	mm
N		20	mm
N1		15	mm
Dowel pins
J6		172	mm
J7		19	mm
N4	max.	5	mm

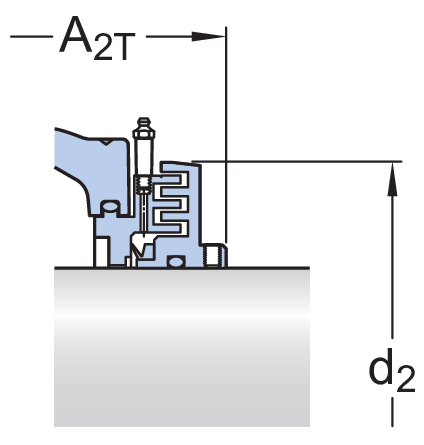

Seal dimensions

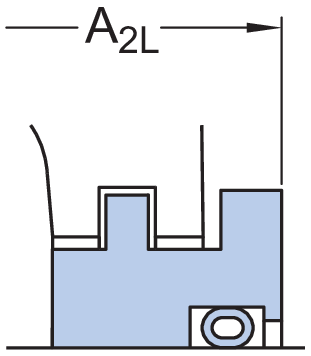

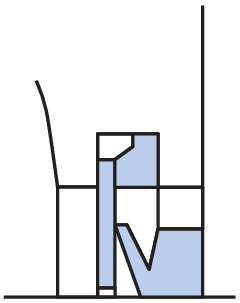

A2L		89	mm

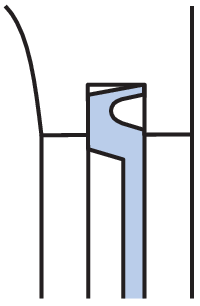

Appropriate seals and end cover Breaking loads, housing

P0°		130	kN
P55°		170	kN
P90°		100	kN
P120°		80	kN
P150°		65	kN
P180°		85	kN
Pa		55	kN

Yield point, cap bolts

Q120°		150	kN
Q150°		85	kN
Q180°		75	kN

Mass

Mass housing

1.9

kg

Mounting information

Cap bolt, size			M 10x40
Cap bolt, rec. tightening torque			50	N·m
Appropriate attachment bolt, size	G		12	mm
Appropriate attachment bolt, rec. tightening torque			80	N·m
Initial grease fill, 20%			25	g
Initial grease fill, 40%			40	g
